Plasma Cutter Accessories P80 Nozzles Electrodes
Plasma cutter consumables p80 nozzles electrodes Introduction
Hot sales Large Qty in stock,plasma cutter accessories and P80 nozzles electrodes at competitive price,Our nozzles electrodes have long life and strong cutting capacity ,P80 nozzles elctrodes for 63A,100A,120A plasma source with air cooled.
Plasma Cutter Accessories P80 Nozzles Electrodes oview
| Model: | 1.1mm/1.3mm/1.5mm/1.7mm |
| Category: | Plasma P80 Nozzle/Electrodes |
| Views: | 810000 |
| Brand: | Block Wolf/Panasonic |
| CURRENT(A)： | 63A, 100A, 120A |
| Rating: | 4.8 /5 based on 61 votes |
| Standard Price: | $0.5 / Set |
| Supply Ability: | 100000 Sets / Month In stock |
| Payment Terms: | T/T,L/C |
why purchase Plasma Cutter Accessories P80 Nozzles Electrodes from us?
Selling plasma cutter accessories or consumbles and P80 nozzles electrodes at competitive price
We been focus on metal cutting field more than 10 years.
providing professional complete metal cutting solution for difficult problem.
Our CNC machines,spare parts and our solution have withstood a long time
and market test meanwhile obtained consistent high praise from the world customers.
Advantage for Plasma cutter nozzles and electrodes.
1.Our electrodes use imported 2.0 Hafnium.
At president,most of electrodes uses 1.3 or 1.5 Hafnium filament.
2.Unit weight for Nozzles is 22g.
However, hot sales on the market for nozzles its unit weight is 18g from other suppliers.
Above all, High quality Hafnium 2.0 plasma cutter electrodes and heavy weight of plasma nozzles makes plasma cutter accessories have strong piercing capacity with long time usage life compare to other suppliers on sales.
3.Large Qty in stock ,multiple models from different models at best price

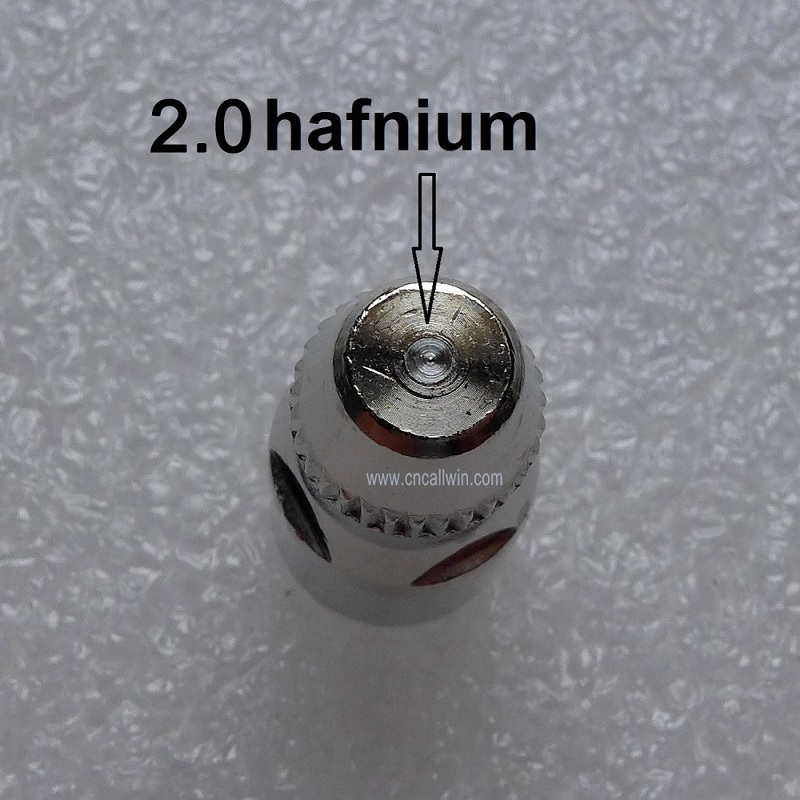

2.0 Hafnium Electrodes

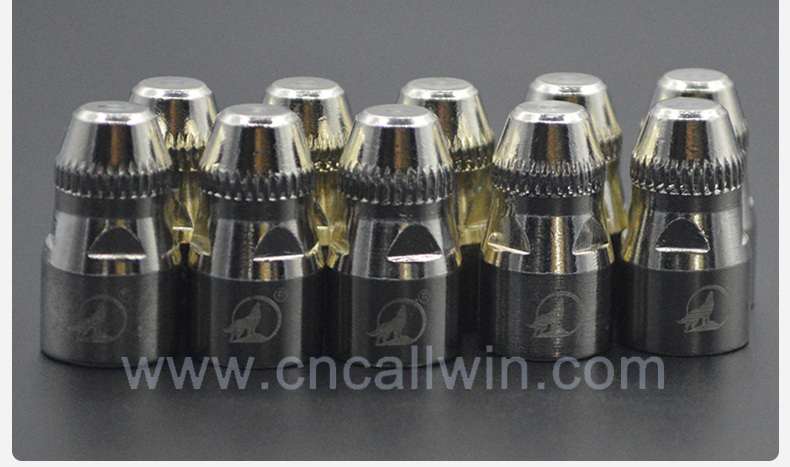

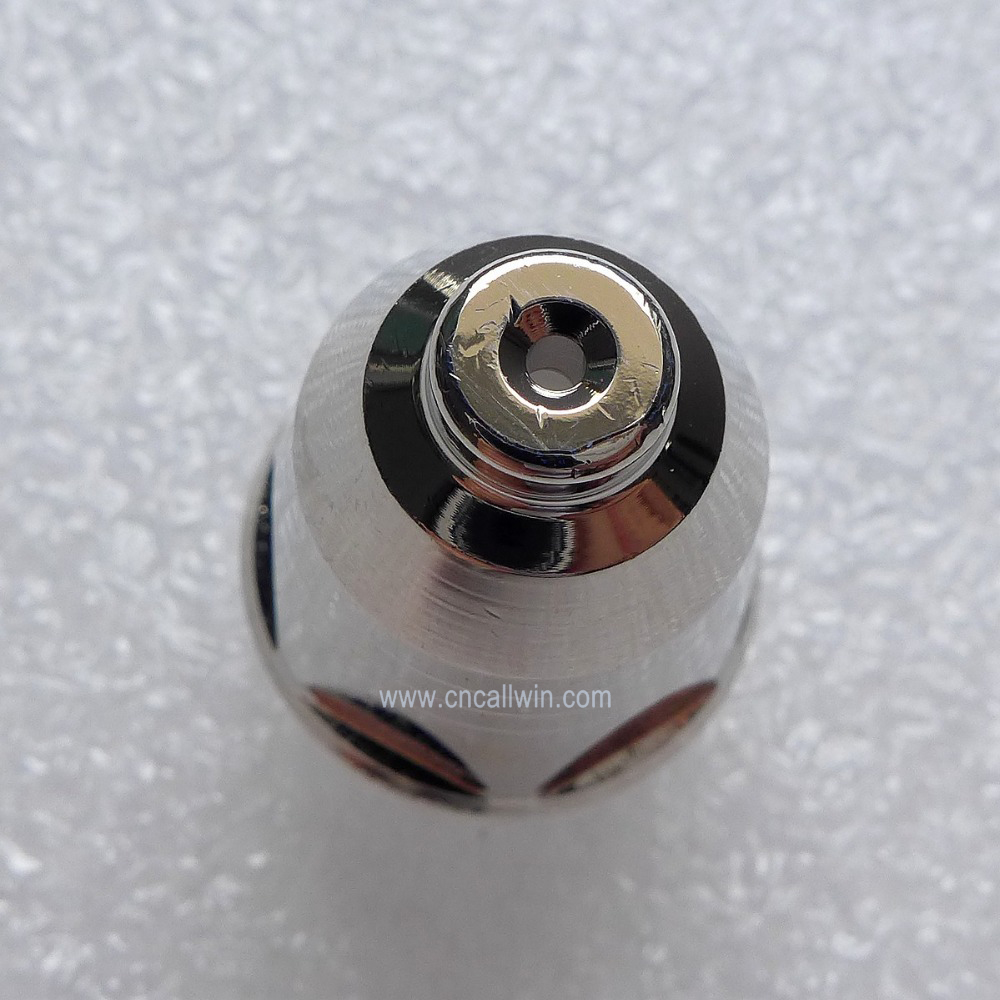

Thickened Copper Plasma Nozzle

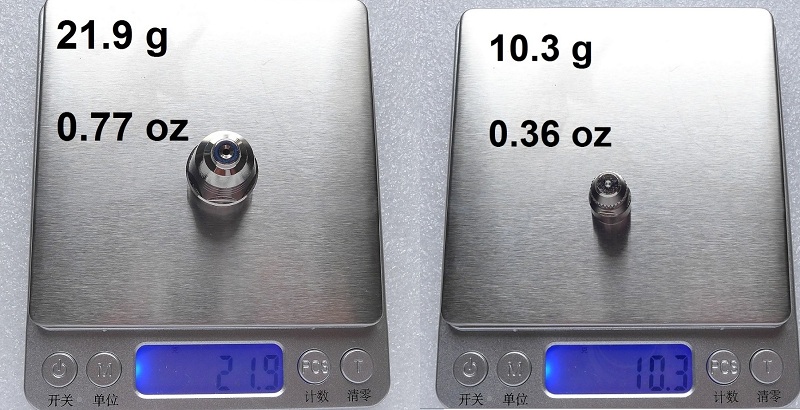

22g Plasma Nozzle &10.3g Electrode

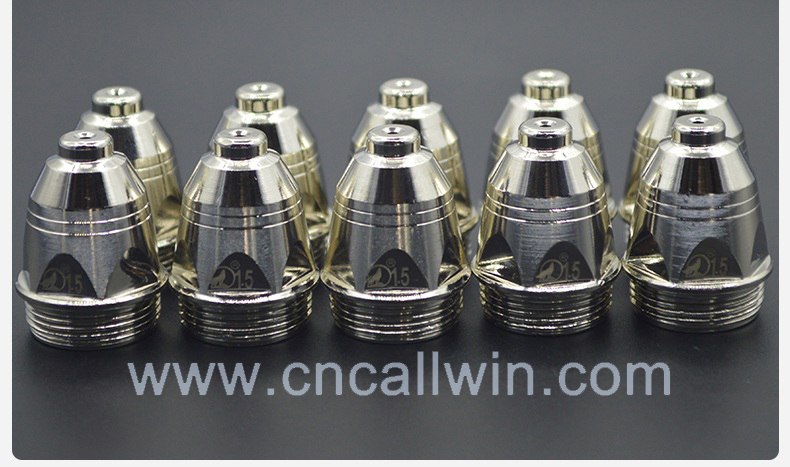

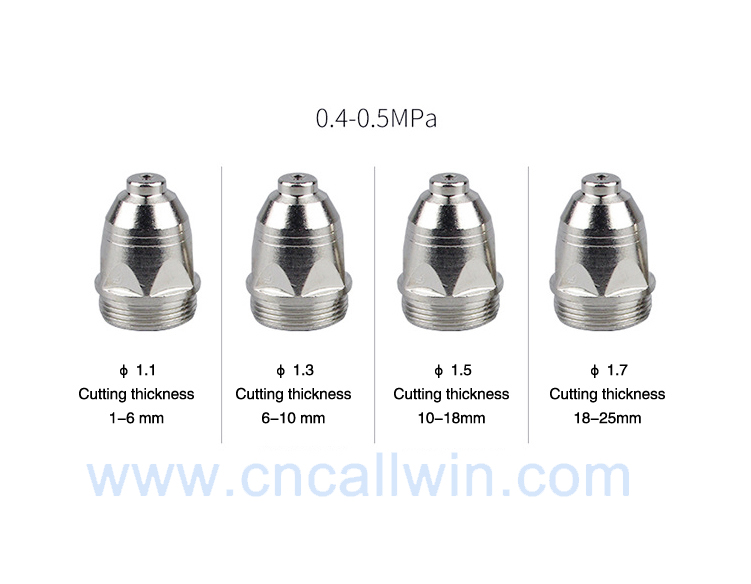

1.1/1.3/1.5/1.7 Plasma Nozzle
Choosing right plasma cutter nozzles
| THICKNESS（mm) 板子厚度 | Nozzle size (mm) 喷嘴孔径 | CURRENT(A) 电流 | ARC Number 弧压 | CUTTING SPEED（mm/min) 切割速度 | piercing time delay(s) 穿孔延时 | torch-to-work distance 切割时距离板的距离 |
| 1-2.5mm | 1.1 | 63A | 120 | 6000-7500 | 0.1S | 3-5mm |
| 3mm | 1.1 or 1.3 | 63A | 120 | 3200 | 0.1S | |
| 4mm | 1.3 | 63A | 120 | 2700 | 0.2S | |
| 5mm | 1.5 | 63A | 120 | 1600 | 0.2S | |
| 6mm | 1.5 | 63A | 125 | 1200 | 0.2S | |
| 7mm | 1.5 | 100A | 135 | 2500 | 0.2S | |
| 8mm | 1.5 | 100A | 140 | 1800 | 0.2S | |
| 10mm | 1.7 | 120A | 150 | 1000 | 0.2S | |
| 12mm | 1.7 | 120A | 150 | 800 | 0.3S | |
| 16mm | 1.7 | 120A | 155 | 600 | 0.3S | 3-5mm |
why short life for plasma cutter nozzles or electrodes?
Plasma cutter nozzles and elctrodes are extremly important consumbables for CNC plasma cutting machine.It has its own life-circle.keeping replacing them is very normal.However,more and more customer complaints that why their life is so short?
1.the plasma cutting nozzles or electrodes you bought are lower-quality level.
More and more customer in order to save purchasing cost,they choose lower-quality at cheapest price being a professional supplier for cutting nozzles or electrodes Lower-quality spare parts not only will effect cutting surface looks bad with more slag but also break torch easier.please stop buying lower quality plasma cutter accessores.
2.Improper distance between plasma torch tip and metal sheet..correct distance should be 3mm-5mm. need check manual book according to diferent brand plasma source.
3.Different cutting material will effect use life of plasma cutter consumbles. brass or copper or aluminum will shorten life.
4.unstable compressed air supplying will shorten life of plasma cutter accessories.
Package for plasma cutting electrodes or nozzles
The packaging method of our plasma nozzle electrode？

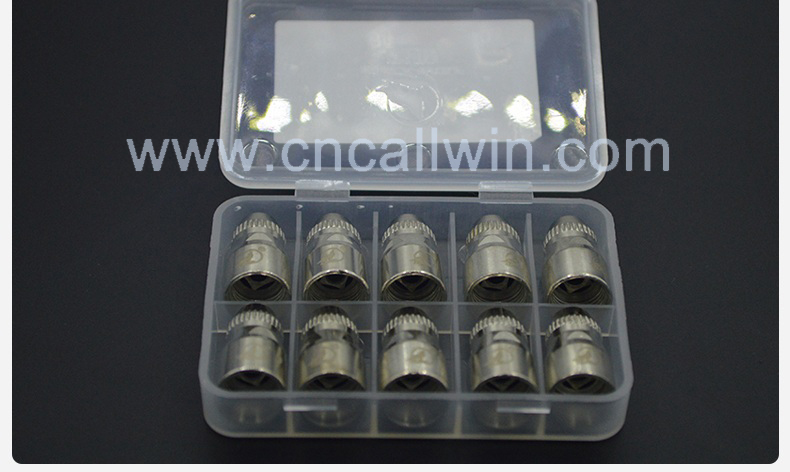

Single plastic box.in general, there are 10 pieces nozzles in single plastic box
usually 10 pieces in single plastic box
the minimum order quantity is 10 boxes (100 pieces).
In order to reduce unnecessary trouble, it is recommended to order the nozzle and electrode together.because different nozzles and electrodes may not match.
Related cnc plasma cutter spare parts
delivery for our cnc plasma consumables
All of our plasma cutter consumable accessories parts such as P80 nozzles electrodes and orther spare parts can be sent to all parts of the world by sea, by air, international FEDEX, UPS, etc.
Because of long time cooperation with Fedex or UPS plus our export Qty is very big than they provide us very good price rate.
You are welcome to feedback your needs and we can provide you with the most timely and accurate freight quotation, as well as the most timely and reliable service
