MINI GANTRY CNC FLAME PLASMA CUTTER
mini Gantry CNC Flame Plasma Cutting Machine Details
| Model: | 1530,1560,1540 |
| Category: | Mini gantry CNC Flame Plasma Cutter |
| custom model | 1540/1560/2040/2060 |
| Brand: | allwin cnc |
| Rating: | 4.8 /5 based on 61 votes |
| Standard Price: | $3450.00 / Set |
| Price Range: | According to model |
| Supply Ability: | 240 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd |
| Payment Terms: | T/T,L/C,paypal,Westunion |
how does Mini gantry CNC flame plasma cutting machine?
advatnage for mini gantry cnc flame plasma cutter
its advantage for This Mini gantry CNC flame plasma cutter
1. Each leg of machine using two pieces of Square tube 10*200*3mm steel processed.
2.The H-beam is 150*200*10mm strong square tube;
That keep the machine good supporting and stability when machine fast move forward and backward in high precision.
3. The beam made by steel tube structure, that for keeping high precision
(That is much better precision than some other supplier’s beam, which is installed the rack and rail way on square pipe
And it is easy for machine function update or modification in the future.
4. Rear part of the beam is used 45# steel folded to strengthen the machine’s
structure. That make machine with two beam structure, and reasonable used
both aluminum alloy and steel’s each advantage to provide machine extreme
stability, and flexibility performance.
5. Machine standard with FANGLING FL2300 controller system, and FANGLING FL1621 Height controller(THC)
and dual used plasma and flame function. There are several sizes of this machine can be customized.
Product Feature for Mini Gantry cnc flame plasma cutting machine
| Effective cutting width | 2000mm (Beam length 2500mm) |
| Effective cutting length | 3000mm (Rail way length 4000mm) |
| Plasma cutting capacity | Depend on plasma source |
| Machine moving speed | 0-6000mm/min |
| CNC Tool quantity and style | 1 tool with Flame THC and flame device |
| (with flame automatic ignition) | |
| Tool lifting distance | ≤100mm |
| Whole machine accuracy standard | JB/T5102-1999 |
| Whole machine drawing accuracy | ±0.2mm |
| Speed accuracy | ±5% |
| Input power | Single phase AC220V 1500W |
| + 3 phase AC 380 for plasma generator | |
| working precision | ±0.2mm/meter |
| Flame (Gas) cutting thickness | Piercing Capacity: 5-60mm |
| Edge Start: 5-120mm |
basic component for mini gantry cnc flame plasma cutter
| Item | Quantity | Unit | Specification | |
| KING-2040G-ST | 1 | SET | Aluminum beams designed | |
| Driving way | Dual drive | |||
| Distance between Y axis rails | 2500 | mm | Effective cutting width 2000mm | |
| Y axis Rail way length | 4000 | ㎜ | Effective cutting length 3000mm | |
| X axis driving system | 1 | set | Dual drive 86 series motor motor | |
| Y axis driving system | 2 | sets | Dual drive 86 series motor | |
| Z axis driving system | 1 | set | step lifting motor | |
| Motor and cables | 3 | sets | step motor shield cables | |
| Gear box | 3 | sets | Gear box | |
| CNC controller | 1 | set | FANGLING FL2300B | |
| X and Y axis gas and | 2 | sets | Heavy duty industrial cable | |
| cable moving | chain | |||
| Electrical gas control | 2 | sets | Taiwan valves with Korean | |
| X axis linear guideway | 2 | sets | HIWIN 2.0 guild rails | |
photo for Mini Gantry CNC flame plasma cutter with Square tube legs and steel H beam and X-axis dust proof
2.0 High precision Square guild rails with Rack
Hypertherm Plasma cutter accessories/Nozzles

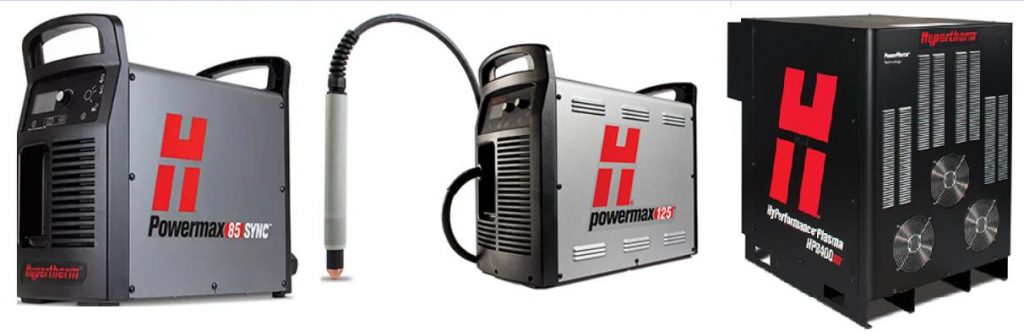

Hypertherm powermax plasma source 45A
Cutting Capacity of plasma geneartor
| China Huayuan Power | USA Hypertherm Power | ||
| Power supply | Cutting thickness | Power supply | Cutting thickness |
| 63A | 8mm | 45A | 8mm |
| 100A | 15mm | 65A | 10mm |
| 120A | 20mm | 85A | 12mm |
| 160A | 30mm | 105A | 18mm |
| 200A | 40mm | 125A | 25mm |
| 200A | 30mm | ||
Overview for heavy mini Gantry CNC flame plasma cutter
CNC flame cutting machine is a type of CNC metal cutting system that uses fuel gas with oxygen or gasoline with oxygen to cut metal materials.
CNC plasma cutting machine is a type of CNC metal cutting system that uses plasma arc to melt and evaporate the metal part or part of the incision of the workpiece.
and uses the momentum of the high-speed plasma to remove the molten metal to form the incision.
The CNC plasma flame cutting machine is to ionize the material to produce a high temperature of 6000 degrees Celsius to 8000 degrees Celsius to quickly melt the object.
In the energy center of the plasma arc, the gas can completely form an ion state to reach a high temperature of 15,000 to 30,000 degrees Celsius, and quickly merge metals to achieve rapid cutting.
The purpose is to melt the metal through the plasma arc when working, and then use the attached airflow to blow the melted metal away to achieve the purpose of cutting.
CNC flame cutting machine with plasma torch is a type of portable plasma cutter with CNC controller, which can cut metals up to 200mm. It’s also known as CNC oxy-fuel gas and plasma cutting machine.
CNC plasma and flame cutting machine, CNC oxy fuel cutting machine, CNC plasma & oxy-fuel cutting machine
One machine could work two models
related cnc metal plasma cutting machine
package and delivery for mini Gantry Flame plasma cutter
This structure for Mini Gantry flame plasma cutter is specicial designed to avoid expensive sea freight.
its package size for 1530 mode is 3650MM*950MM*1000MM(L*W*H) Gross weight is 750KGS
it is very popular for customers wants heavy stable frame plasma cutter but try to save sea freight and custom clerance at destination..
This heavy portable plasma cutter is very poplular in Africa,Europe.
All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment.
The boxes meet the inspection standards of the United States and the European Union;
We have our own long-term cooperation transportation company,
which will give us more favorable prices and feasible suggestions in transportation prices.
which will minimize the customer’s freight expenses, and there will never be overcharges.
package for Mini Gantry style flame plasma cutter
package size:3650mm*950mm*1100mm
we here provide you one-stop solution for metal industries cnc machine at affordable price
