Plasma Consumables Manufacturer
Plasma Accessories/Consumables nozzles electrode replacement parts suitable for Hypertherm,At Good Price With Long Life; Professional Supplier

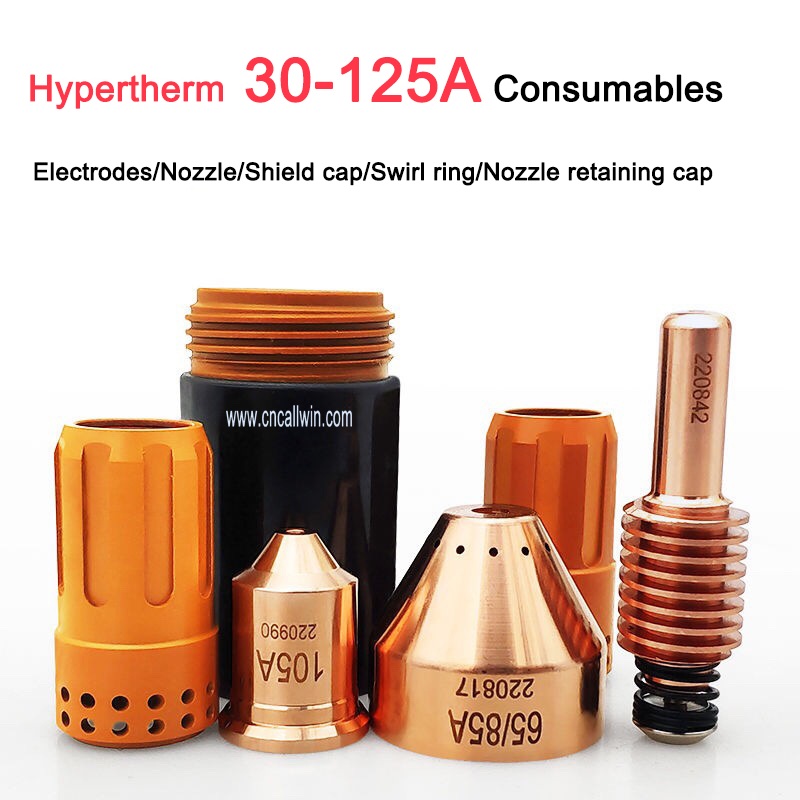

Plasma Consumables Nozzle Electrode Suitable For Hypertherm
Along with industrial technical growing fast,more and more CNC plasma cutting machine become subjects for metal fabriction.
Being a professional supplier for CNC machines we would like to recomend Hypertherm plasma cutter with its consumables.
1. Larger stock with all kinds of models at very competitive price.
Everyone knows price for Original Hypertherm accessories/consumable/cutting nozzles/cutting electrodes is very expensive.We are sure that our pricing is equal to 25% of original Hypertherm accessories but usage life or cutting quality is nearly 90% of original Hypertherm accessories.
2. The Hypertherm plasma accessories consumables are very competitive.
The more you order, the lower the price; it is very suitable for distributors who purchase in large quantities or users who use Hypertherm plasma accessories consumables in large quantities;
Hypertherm plasma consumables tips includes:cutting nozzles/cutting electrodes/shield cap/swirl ring/Retainning cap
3. The plasma nozzle/plasma electrodes and plasma shield cap are processed and produced by high-precision machines,
with beautiful appearance and quality that fully meets the requirements of use;We have received customer’s praise on Quality and price.
4. Our consumables, especially nozzles, electrodes, and protective caps have a relatively long service life and reliable cutting accuracy.
Oxygen-free copper as he material of electrodes with best quality Hafnium embedded. The CuCrZr copper used in Nozzls and sheild has longer life.
All cutting accessories will be combinded well with cutting torch.
5. Hypertherm plasma generator is more popular in the world.However,Original hypertherm consuambles keep raising price.Then contact us we would give you competitive price with very good quality to replace these hypertherm plasma consuambles tips
6. We could supply many top brand cutting consumables like Thermal dynamics/Hypertherm/LincoIn/kaliburn/P80/Trafimetat/ super competitive price with super quality level
Fast shiping speed& best price rate with Fedex/DHL or other express courier
Hypertherm powermax 45xp accessories consumables introduction
Product Name | Model NO. | Price(usd) |
Nozzle | 220941 | 1.0 |
Shield cap | 220817 | 9.3 |
Shield cap（handheld） | 220818 | 7.8 |

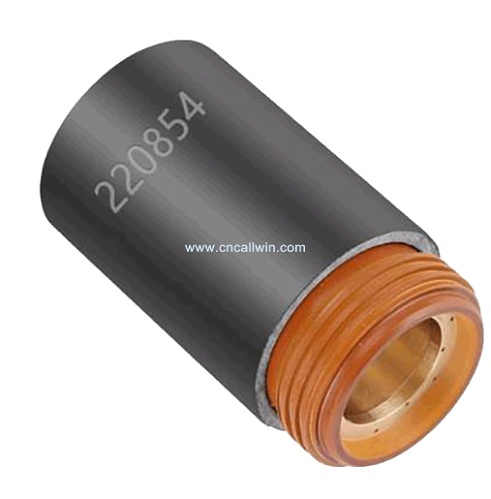

Retaining cap | 220854 | 16.50 |
Electrode | 220842 | 1.25 |
Swirl ring | 220857 | 10.87 |
Hypertherm powermax65A accessories consumables introduction
| Product Name | Model NO. | Price(usd) |
| Nozzle | 220819 | 1 |
| Shield cap | 220817 | 9.3 |
| Shield cap（handheld） | 220818 | 7.8 |
| Retaining cap | 220854 | 17.5 |
| Electrode | 220842 | 1.4 |
| Swirl ring | 220857 | 10.87 |

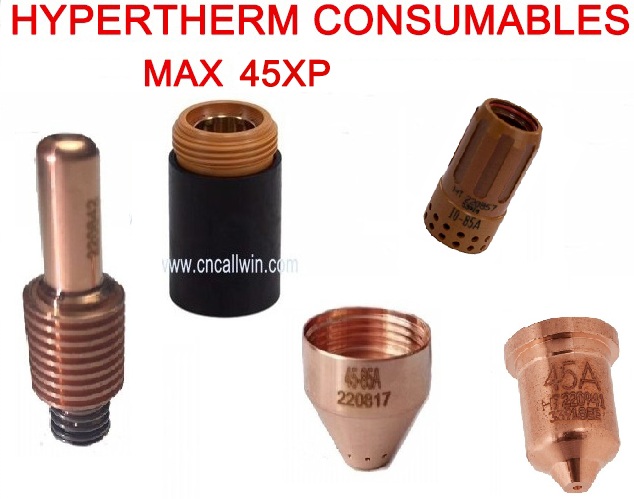

Hypertherm plasma cutter consumables Powermax45xp Torch Nozzle Electrode shield cap

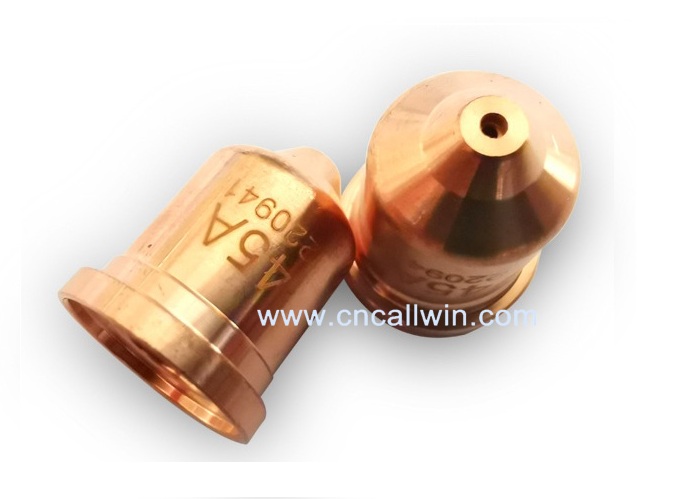

220941 Nozzle for powermax45xp

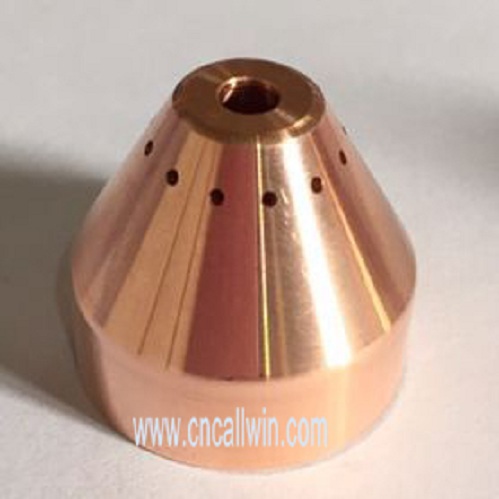

220817 Shield cap for powermax45xp

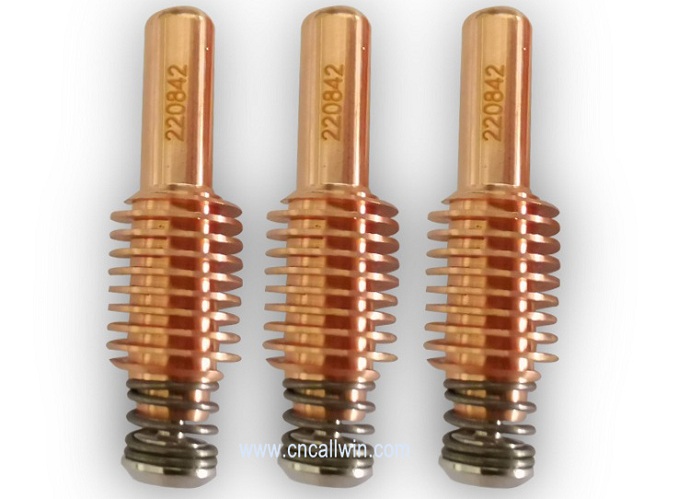

Powermax45xp 220842 electrode

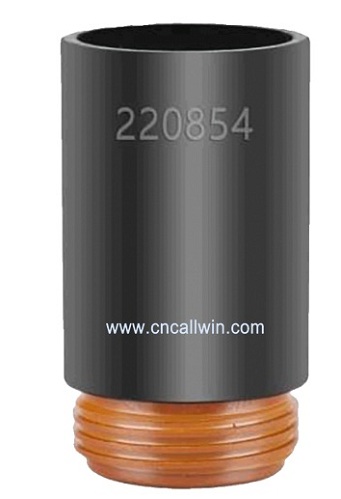

220854 Retaining cap for powermax45xp

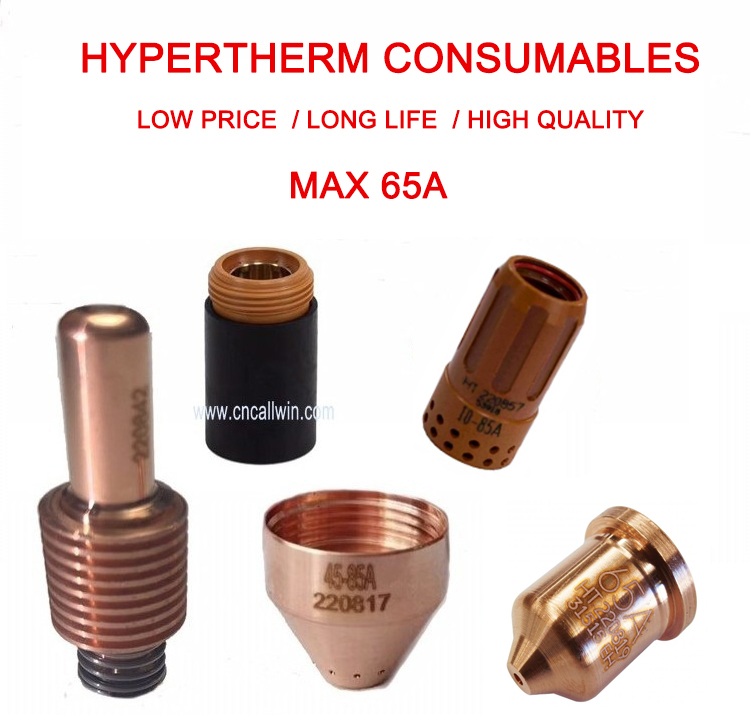

Powermax65A Hypertherm plasma cutter Torch Nozzle Electrode shield cap

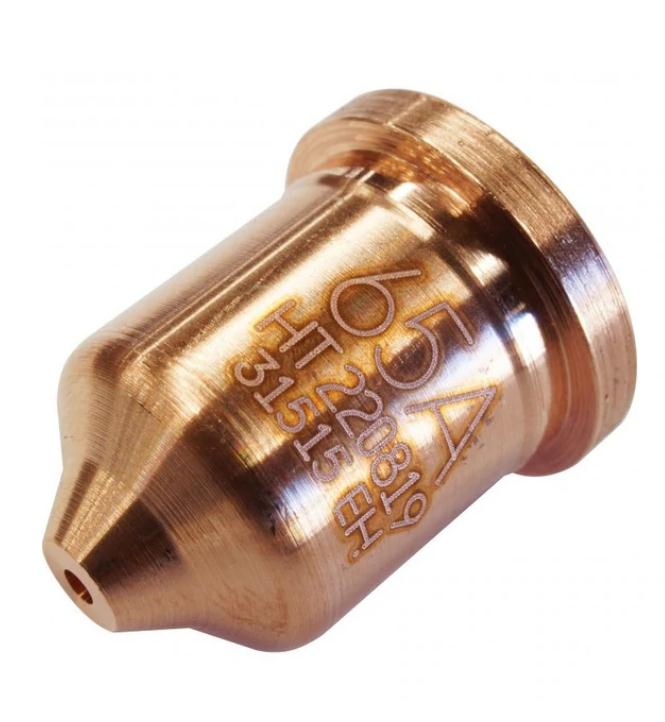

powermax65A 220819 Nozzle
powermax65A 220817 Shield cap
Powermax65A 220842 electrode
powermax65A 220854 retaining cap
Hypertherm powermax85A accessories consumables introduction
Product Name | Model NO. | Price(usd) |
Nozzle | 220816 | 1 |
Shield cap | 220817 | 6.8 |
Shield cap（handheld） | 220818 | 7.8 |
Retaining cap | 220854 | 17.5 |
Electrode | 220842 | 1.4 |
Swirl ring | 220857 | 10.87 |

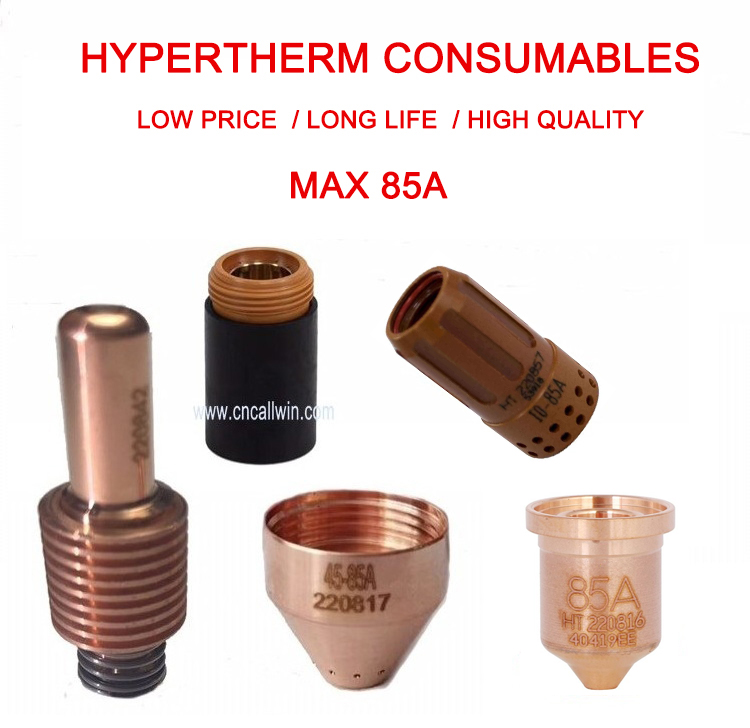

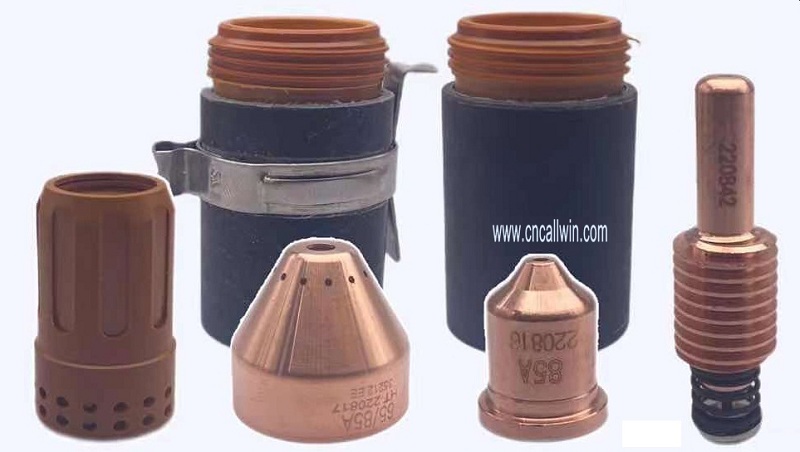

Powermax85A hypertherm plasma cutter acessories Torch Nozzle Electrode shield cap

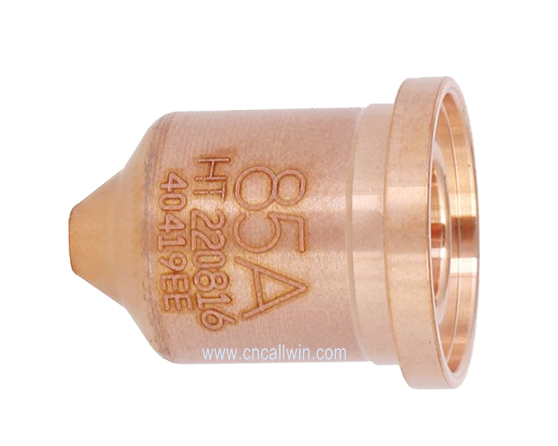

powermax85A 220816 Nozzle
powermax85A 220817 Shield cap
Powermax85A 220842 electrode

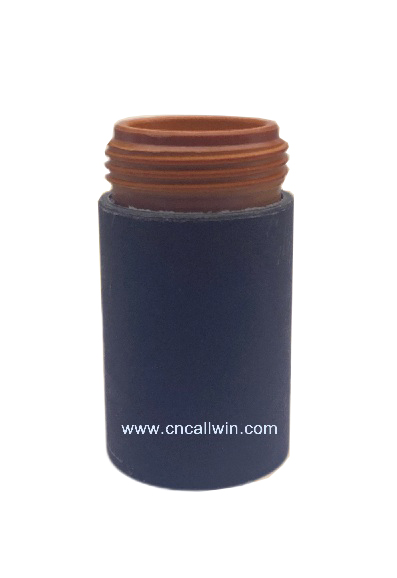

Powermax85A 220854retaining cap
for your reference for hypertherm plasma cutter accessories torch
| Series No. | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 2 | 220993 | Shield for Plasma cutting torch consumables Mechanized105A |
| 3 | 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A |
| 4 | 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A |
| 5 | 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A |
| 6 | 220948 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A |
| 7 | 220854 | Retaining Cap for Plasma cutting torch consumables 5A/65A/85A |
| 8 | 220941 | Nozzle for Plasma cutting torch consumables Handheld 45A |
| 9 | 220819 | Nozzle for Plasma cutting torch consumables Handheld 65A |
| 10 | 220930 | Nozzle for Plasma cutting torch consumables |
| 11 | 220816 | Nozzle for Plasma cutting torch consumables 85A |
| 12 | 220990 | Shield for Plasma cutting torch consumables 105A |
| 13 | 220842 | Electrode for Plasma cutting torch consumables 45A/65A/85A/105A |
Table of Contents
Hypertherm powermax105A accessories consumables introduction
| Product Name | Model NO. | Price(usd) |
| Nozzle | 220990 | 1 |
| Shield cap | 220993 | 6.8 |
| Retaining cap | 220854 | 17.5 |
| Electrode | 220842 | 1.4 |
| Swirl ring | 220994 | 11 |

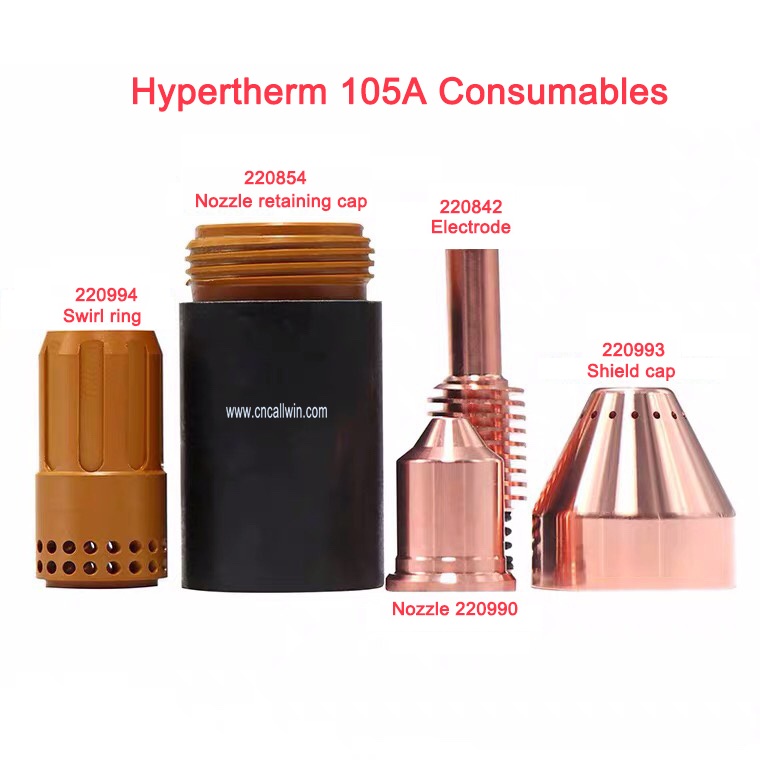

Powermax105A Torch Nozzle Electrode shield cap

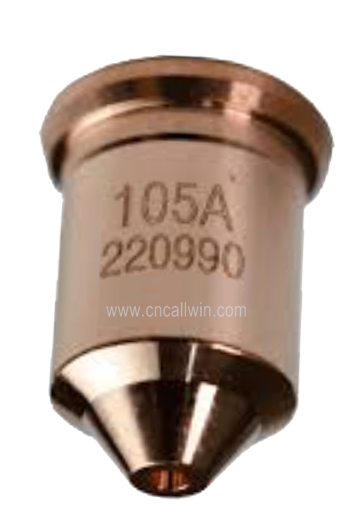

powermax105A 220990 Nozzle

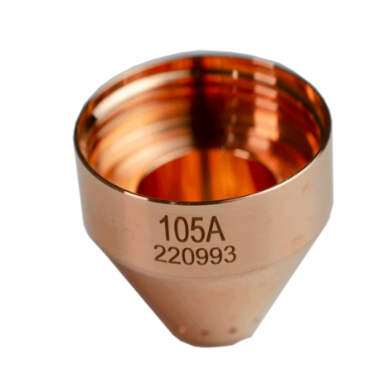

Powermax105A 220993 shield cap
Powermax105A 220842 electrode
Powermax105A 220854retaining cap
Hypertherm plasma accessories powermax125A accessories consumables introduction
| Product Name | Model NO. | Price(usd) |
| Nozzle | 420044 | 1.3 |
| Shield cap | 420045 | 6.8 |
| Retaining cap | 220936 | 45 |
| Electrode | 220937 | 1.6 |
| Swirl ring | 220488 | 11 |

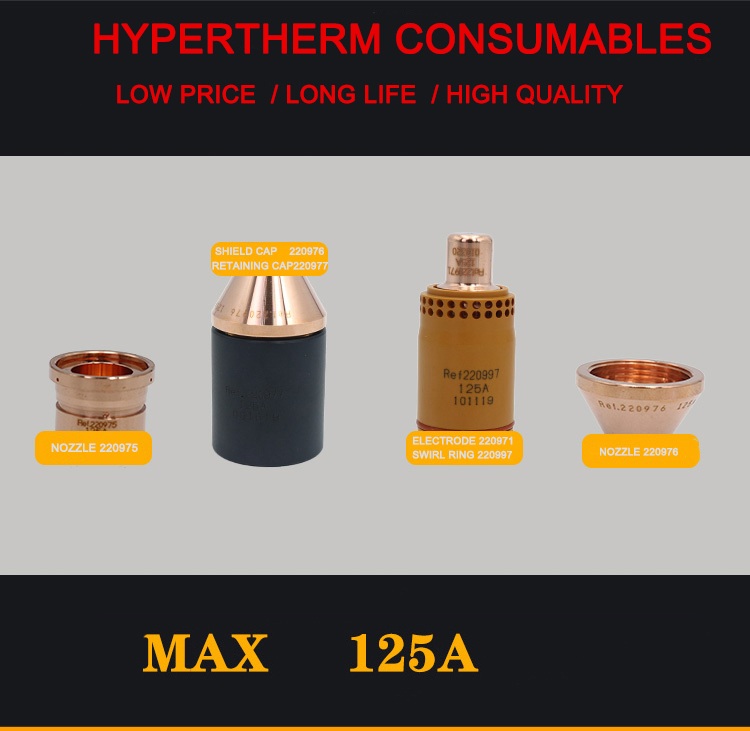

Powermax125A consumables/accessories Torch Nozzle Electrode shield cap

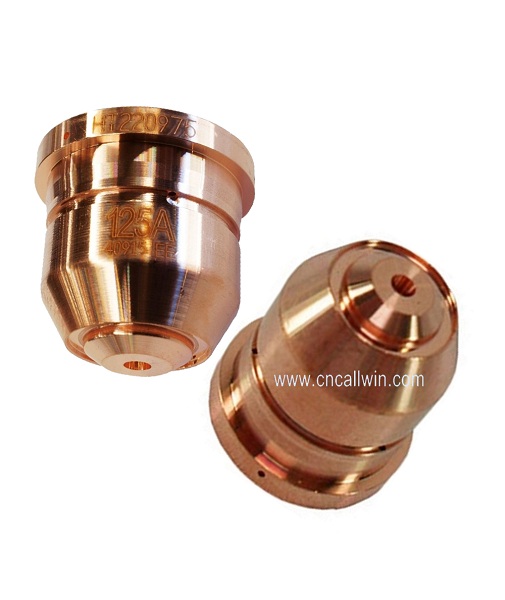

powermax125A 220975 Nozzle

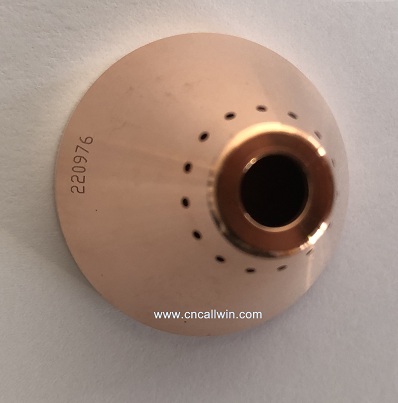

Powermax125A 220976 shield cap
Powermax125A 220971 electrode
Powermax125A 220977 retaining cap
Hypertherm powermax130A accessories consumables introduction
| Product Name | Model NO. | Price(usd) |
| Nozzle | 220182 | 1.3 |
| Shield cap | 220183 | 6.8 |
| Retaining cap | 220756 | 45 |
| Electrode | 220181 | 1.6 |
| Swirl ring | 220488 | 11 |

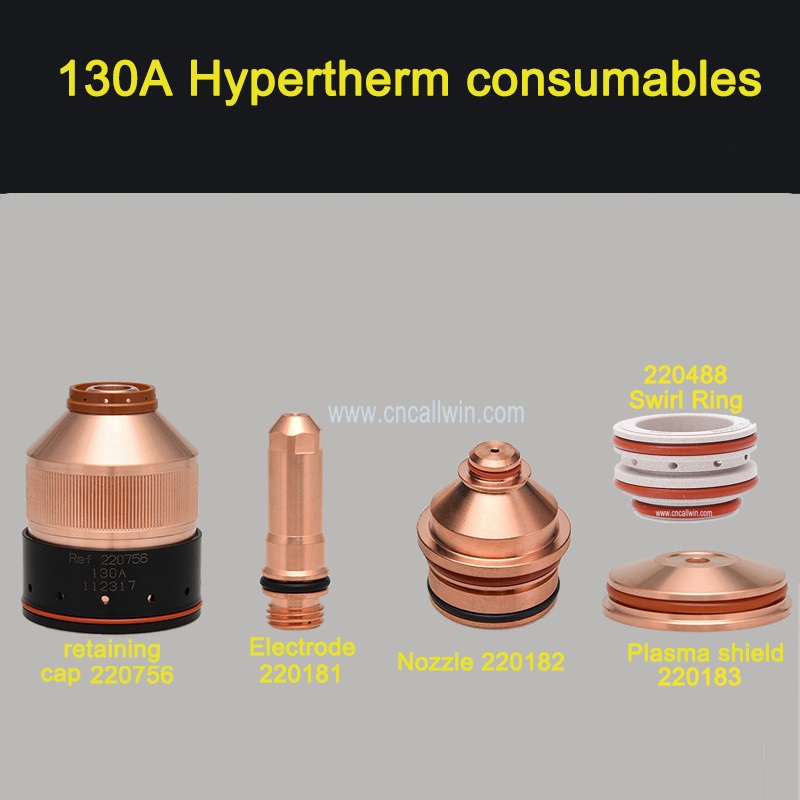

Powermax130A Torch Nozzle Electrode shield cap

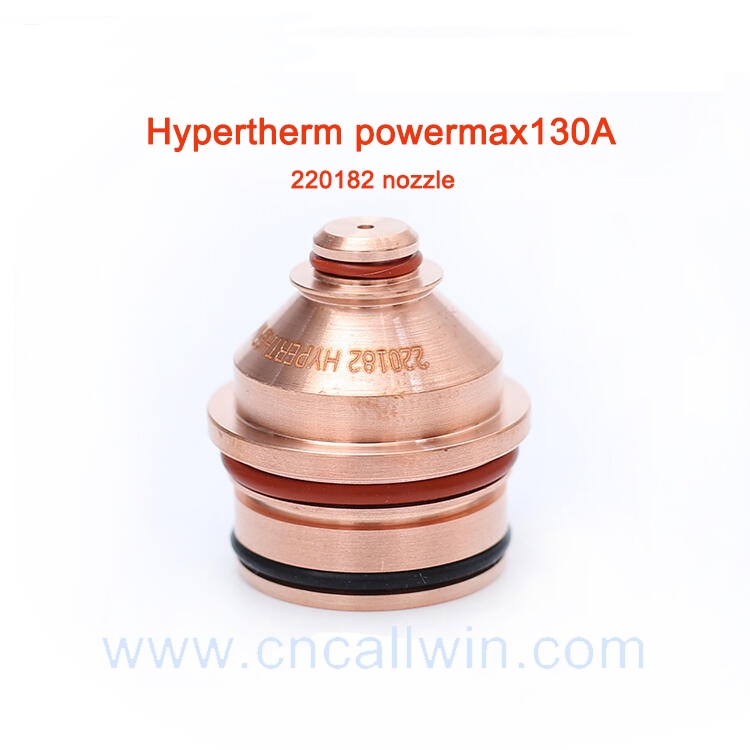

powermax130A 220182 Nozzle

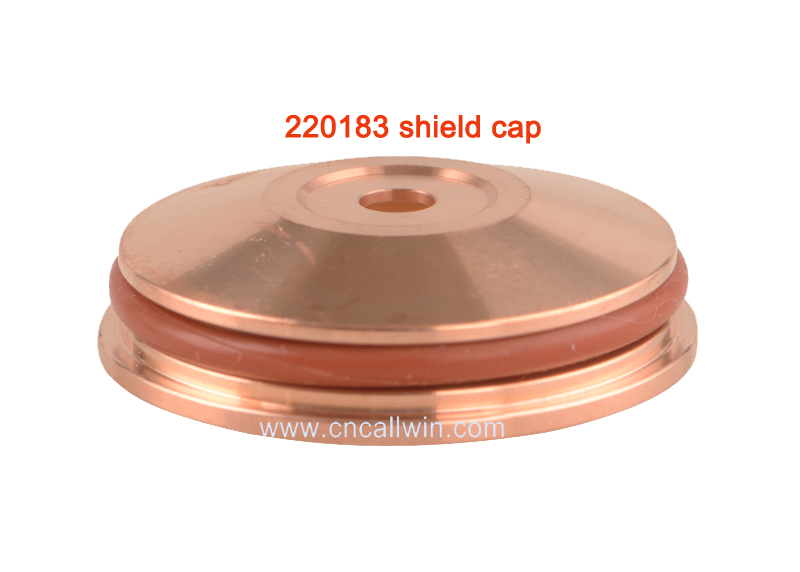

Powermax130A 220183 shield cap
Powermax130A 220181 electrode
Powermax130A 220756 retaining cap
Hypertherm plasma accessories Electrode nozzles shield cap introduction
Hypertherm plasma cutter accessories/consumables includes:
cutting torch,Nozzles,electrodes,retaining cap swirl ring and other suppliers,
We have large stock of Hypertherm plasma cutter accessories/consumables inlcudes:
Powermax45XP, Powermax65A, Powermax85A, Powermax105A, Powermax125A,/200A
We also selling CNC plasma cutting machine with their controlling system or other type of spare parts.
our Hypertherm plasma accessories cutting torch consumables are high-quality products, processed at very competitive price.
and produced with high-quality raw materials and advanced technology.
Our products are characterized by long service life and high precision.
It has been verified by a wide range of customers and long-term production cutting.
Our Hypertherm accressories consumables are suitable for most Hypertherm plasma cutting machine models,
The models of these consumables are as follows:
The consumables suitable for Hypertherm powermax45xp cutting machine are: 220941 nozzle, 220817 shield cap, 220818 shield cap (handheld), 220854 retaining cap,220842 electrode,220857 swirl ring;
Consumables suitable for Hypertherm powermax65A cutting machine are: 220819, nozzle, 220817 shield cap, 220818 shield cap (handheld), 220854 retaining cap,220842 electrode,220857 swirl ring;
Consumables suitable for Hypertherm powermax85A cutting machine are: 220816 nozzle, 220817 shield cap, 220818 shield cap (handheld), 220854 retaining cap,220842 electrode,220857 swirl ring;
Consumables suitable for Hypertherm powermax105A cutting machine are: 220990 nozzle, 220993 shield cap, 220854 retaining cap,220842 electrode,220994 swirl ring;
Consumables suitable for Hypertherm powermax125A cutting machine are: 220975 nozzle, 220976 shield cap, 220977 retaining cap, 220971 electrode,220997swirl ring;
Consumables suitable for Hypertherm powermax130A cutting machine are: 220182 nozzle, 220183 shield cap, 220756 retaining cap, 220181 electrode, 220488swirl ring;
2.0 Hafnium Electrodes
Thickened Copper Plasma Nozzle
why short life for plasma cutter nozzles or electrodes?
Plasma cutter nozzles and elctrodes are extremly important consumbables for CNC plasma cutting machine
Plasma cutter accessories/Consumables kits directly determine its cutting precision.
timely replace cutting nozzles or electrodes is very important to work routine.
However,more and more customer complaints that why their life is so short?
1.the plasma cutting nozzles or electrodes you bought are lower-quality level.
More and more customer in order to save purchasing cost,they choose lower-quality at cheapest price
being a professional supplier for cutting nozzles or electrodes Lower-quality spare parts not only will effect cutting surface
looks bad with more slag but also break torch easier.please stop buying lower quality plasma cutter accessores.
2.Improper distance between plasma torch tip and metal sheet
correct distance should be 3mm-5mm. need check manual book according to diferent brand plasma source.
3.Different cutting material will effect use life of plasma cutter consumbles. brass or copper or aluminum will shorten life.
4.unstable compressed air supplying will shorten life of plasma cutter accessories.
Related cnc plasma cutter spare parts
Package for Hypertherm plasma accessories/Consumables electrodes or nozzles
The packaging method of our Hypertherm plasma accessories nozzle electrode:
Single plastic box.in general, there are 10 pieces nozzles in single plastic box
usually 10 pieces in single plastic box
the minimum order quantity is 10 boxes (100 pieces).
In order to reduce unnecessary trouble, it is recommended to order the nozzle and electrode together.
because different nozzles and electrodes may not match.
top sales Part No. for hypertherm plasma cutter consumables/accessories
| NO. | NAME | Part NO. | use for Hypertherm 45A power max(CNC) |
| 1 | nozzle | 220671 | powermax 45A (CNC style) |
| 2 | shield cap | 220673 | |
| 3 | nozzle retaining cap | 220713 | |

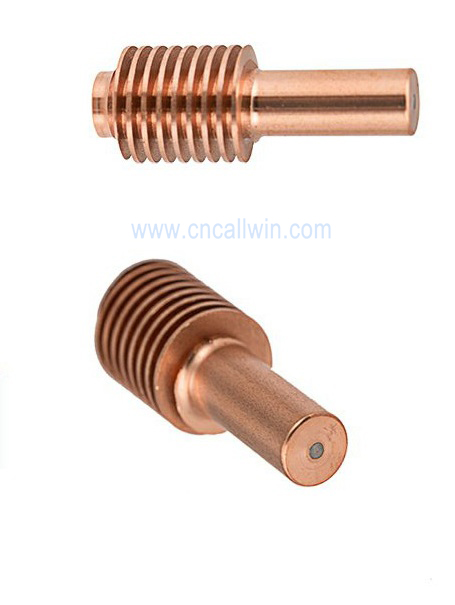

| 4 | electrode | 220669 | |
| 5 | swirl ring | 220670 | |
| NO. | NAME | Part NO. | use for hypertherm(Manual style) |
| 1 | nozzle | 220671 | powermax45（Manual style） |
| 2 | shield cap | 220674 | |
| 3 | nozzle retaining cap | 220713 | |
| 4 | electrode | 220669 | |
| 5 | swirl ring | 220670 | |
| NO. | NAME | Part NO. | use for hypertherm 45 XP (CNC style) |
| 1 | nozzle | 220941 | powermax 45xp(CNC style) |
| 2 | shield cap | 220817 | |
| 3 | outer retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | use for Hyperterhm plasma source 45XP |
| 1 | nozzle | 220941 | powermax45xp（manual style) |
| 2 | shield cap | 220818 | |
| 3 | outer retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 65 |
| 1 | nozzle | 220819 | powermax 65(CNC Style) |
| 2 | shield cap | 220817 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 65(manual style) |
| 1 | nozzle | 220819 | powermax65（manual style） |
| 2 | shield cap | 220818 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 85A(CNC style) |
| 1 | nozzle | 220816 | powermax85 |
| 2 | shield cap | 220817 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 85A(Manual style) |
| 1 | nozzle | 220816 | powermax85（manual) |
| 2 | shield cap | 220818 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 105(CNC style) |
| 1 | nozzle | 220990 | powermax105(CNC style） |
| 2 | shield cap | 220993 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220994 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 105（manual style） |
| 1 | nozzle | 220990 | powermax105（manual style） |
| 2 | shield cap | 220992 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220994 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 125A(CNC STYLE) |
| 1 | nozzle | 220975 | powermax125(CNC STYLE) |
| 2 | shield cap | 220976 | |
| 3 | nozzle retaining cap | 220977 | |
| 4 | electrode | 220971 | |
| 5 | swirl ring | 220997 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 125A(manual style) |
| 1 | nozzle | 220975 | powermax125（Manual style) |
| 2 | shield cap | 420000 | |
| 3 | nozzle retaining cap | 220977 | |
| 4 | electrode | 220971 | |
| 5 | swirl ring | 220997 | |
| NO. | NAME | Part NO. | Use for Hypertherm plasma source 200A(CNC) |
| 1 | nozzle | 420044 | Maxpro 200(CNC STYLE) |
| 2 | shield cap | 420045 | |
| 3 | nozzle retaining cap | 220936 | |
| 4 | electrode | 220937 | |
| 5 | swirl ring | 220488 |
