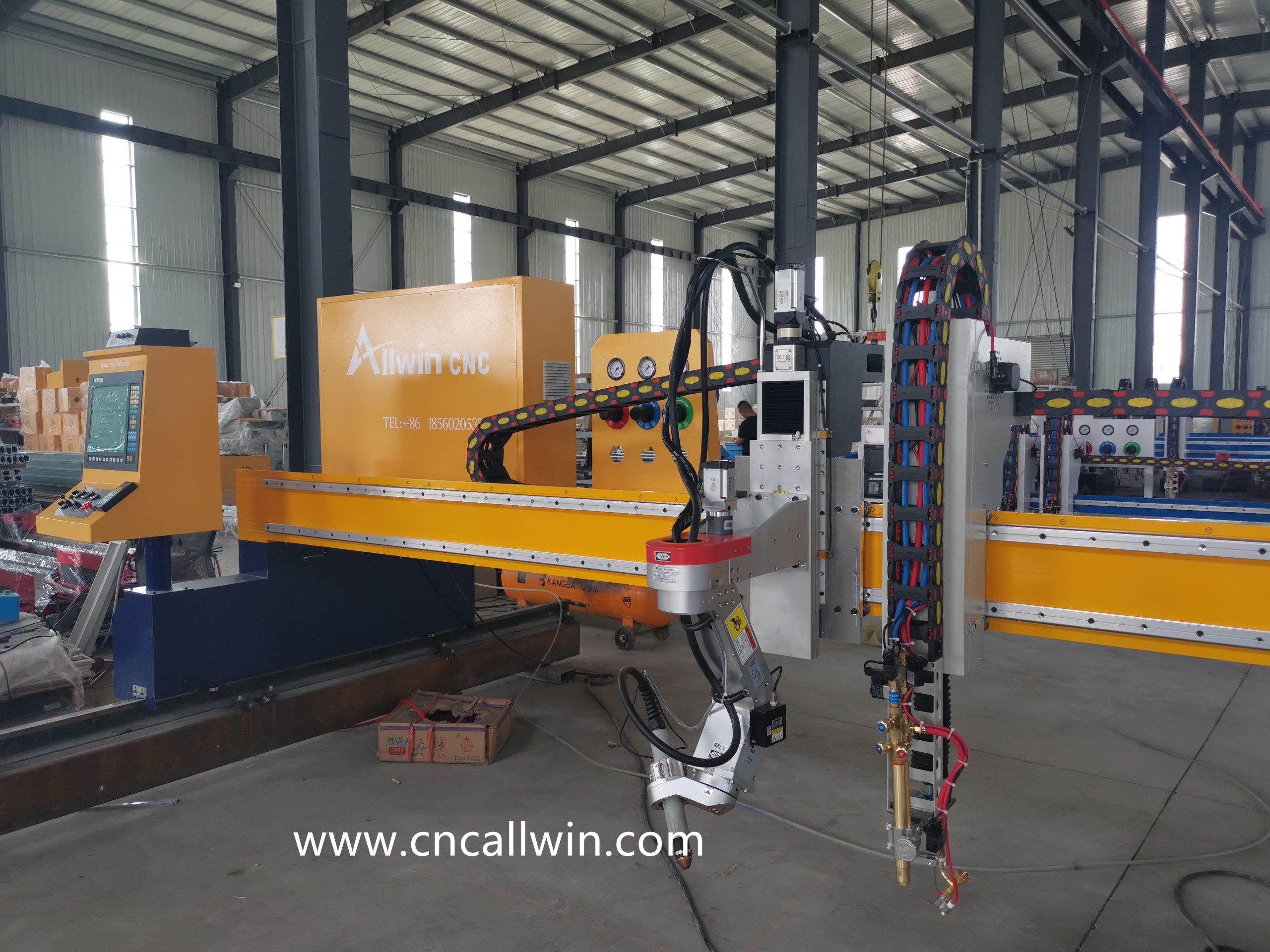

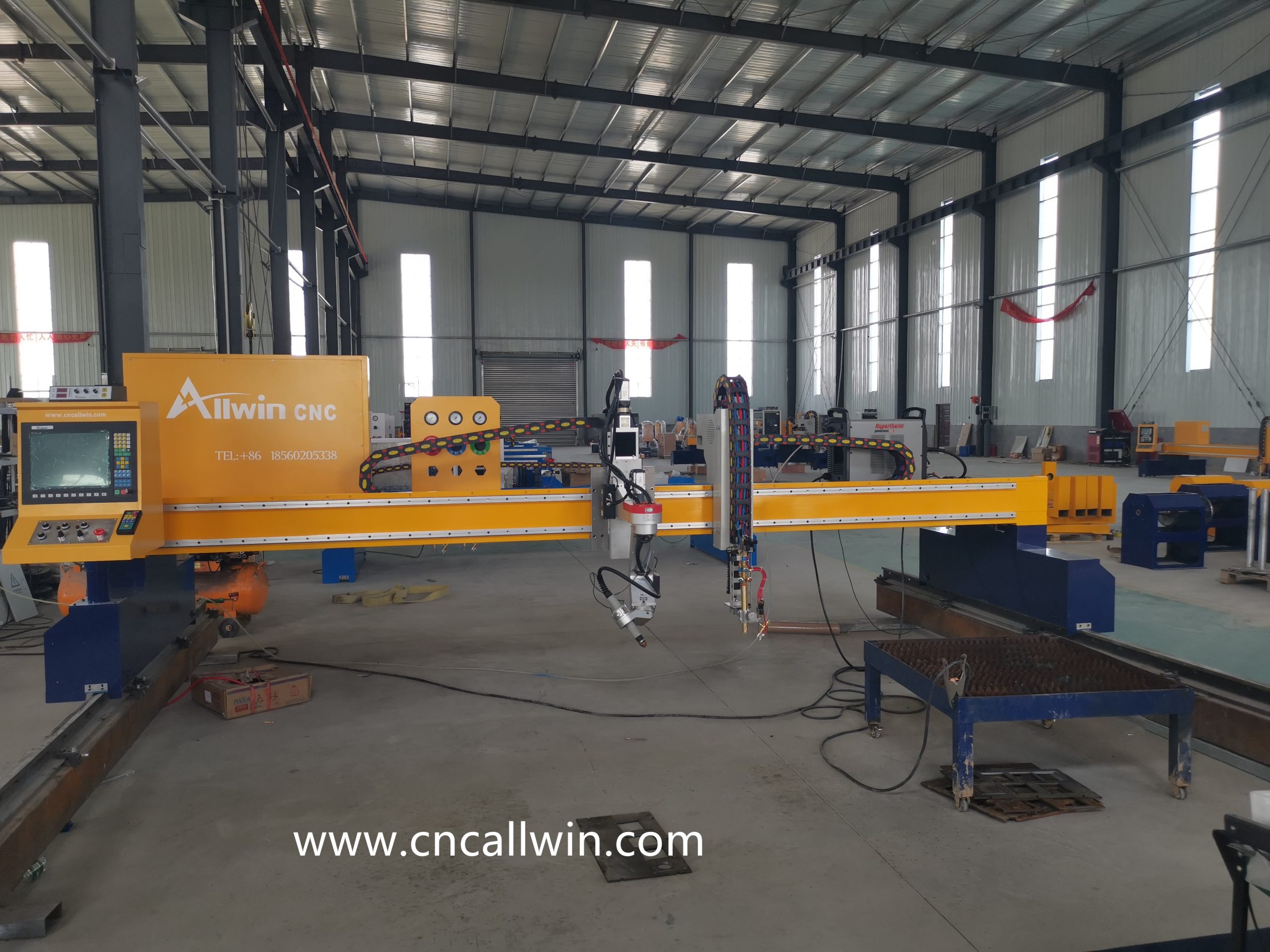

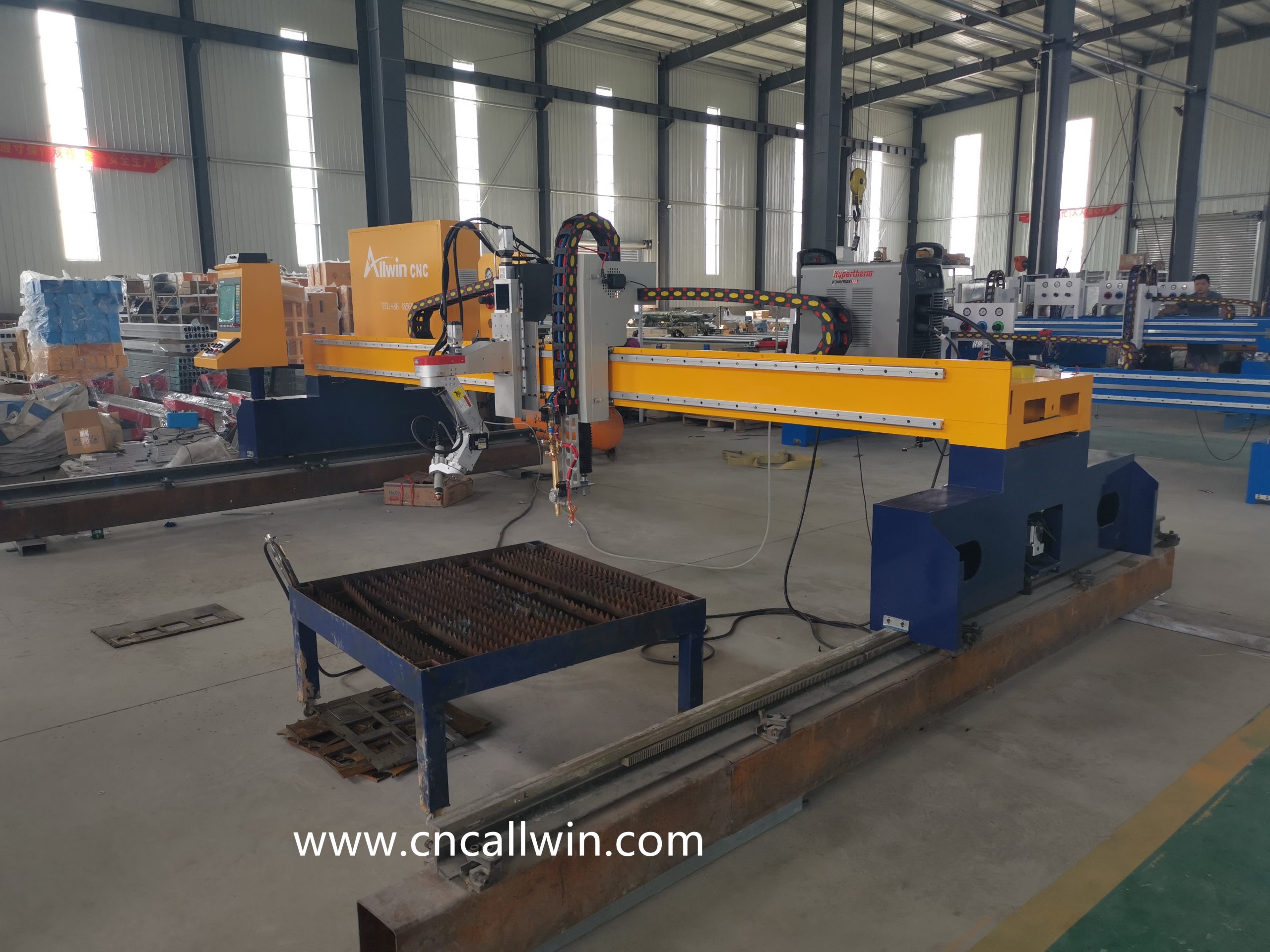

5 Axis plasma CNC Beveling Metal cutting machine
Application scenarios and advantages of Plasma CNC beveling metal cutting machine

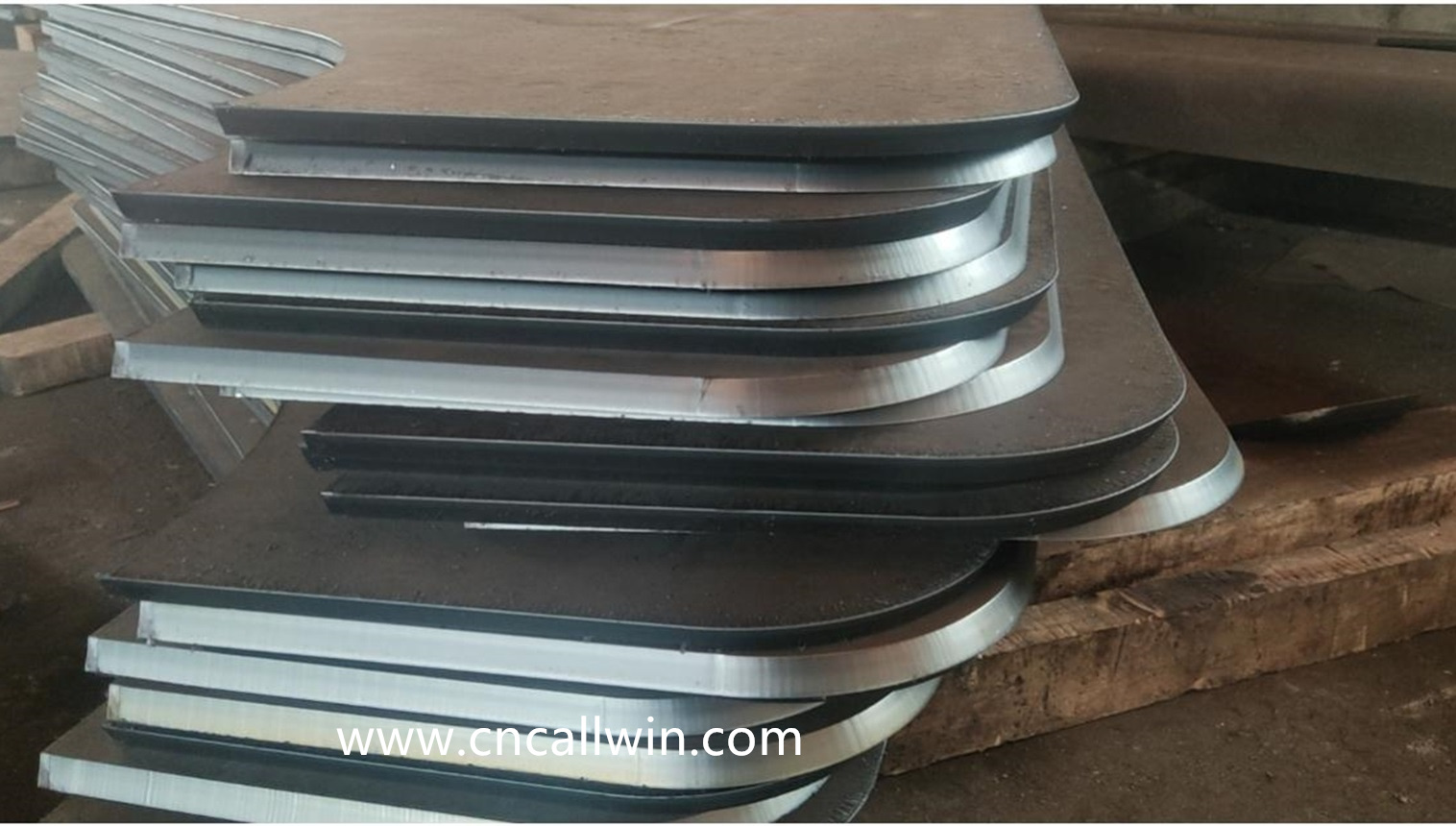

Plasma CNC beveling metal cutting machine is mainly used for cutting metal workpieces with bevel surfaces, such as bevel surface cutting of pipe fittings, bevel surface cutting of steel plates, and bevel surface cutting of pressure vessels.
The 5-axis CNC plasma beveling cutting machine can cut bevels from 0 degrees to 45 degrees, which can be formed at one time, and the cutting surface is smooth
Details of 5 axis Plasma CNC beveling metal Cutting Machine
| Model: | 3050/3060 |
| Category: | 5 Axis Plasma CNC Beveling metal Cutting Machine |
| Views: | 500 |
| Brand: | Allwin cnc |
| Rating: | 4.8 /5 based on 61 votes |
| Standard Price: | $18000 / Set |
| Price Range: | $17900.00 to $30000.00 / Set According to Configurations |
| Supply Ability: | 10 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd |
| Payment Terms: | T/T,L/C,paypal,Westunion |
China Plasma metal beveling Cutting Machine Videos
Product Feature for cnc plasma metal beveling cutting machine
CNC beveling cutting machines are suitable for various scenarios. Some of the common applications include:
1. Pipeline manufacturing: CNC bevel cutting machines are used in the pipeline industry. They enable automated bevel cutting, allowing precise control over cutting angles and bevel dimensions. This improves production efficiency and quality. CNC bevel cutting machines are suitable for various pipe materials such as steel and stainless steel.

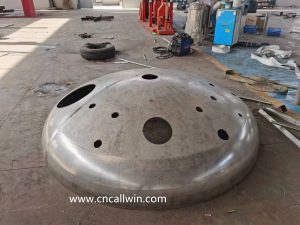

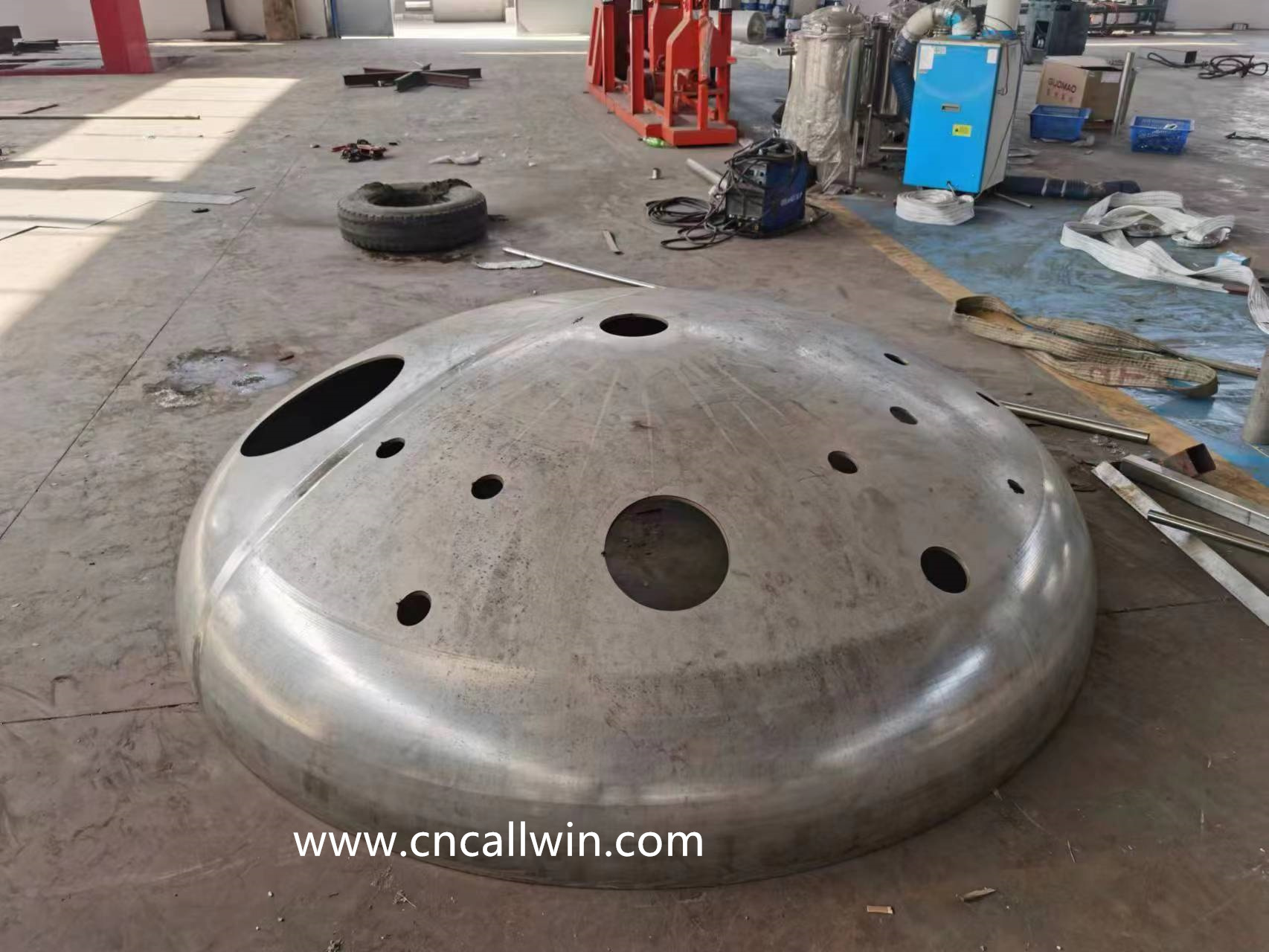

2. Pressure vessel manufacturing: CNC bevel cutting machines are widely used in the production of pressure vessels. These machines enable accurate bevel cuts for welding and assembly processes. The CNC technology ensures precise and consistent bevel cuts, enhancing welding quality and sealing performance.
Shipbuilding: CNC bevel cutting machines play a crucial role in shipbuilding. Ship structures often require various shapes of bevel cuts for plate joining and welding. CNC bevel cutting machines can accurately cut bevels according to the ship design requirements, thereby improving manufacturing efficiency and quality.
3. Bridge construction: CNC bevel cutting machines find extensive applications in bridge construction. Bevel cuts are often required for welding and connecting various bridge components. CNC bevel cutting machines enable precise and consistent bevel cuts, enhancing the efficiency and quality of bridge manufacturing.
4. Other industries: CNC bevel cutting machines are also suitable for various other industries such as petrochemical, nuclear power, and metallurgical manufacturing. In these industries, the machines assist in meeting complex bevel cutting requirements, improving production efficiency, and ensuring high-quality products.
In summary, CNC bevel cutting machines find applications in diverse industrial scenarios where precise and efficient bevel cutting is required. These machines leverage CNC technology to deliver
parameter for good price stable working Dual drive cnc plasma cutting machine
| Moving axis | Choose cutting axis | Range of activities |
| Y axis | Pipe rotary driving shaft | 360 ° free rotation |
| X axis | The trolley moves along the length of the tube | The maximum stroke 6000 mm |
| A axis | The torch swings along the length direction of the pipe | ±60° |
| B axis | The torch swings along the radial direction of the tube | ±45° |
| Z axis | Torch move up and down | Travel 300mm |
Beveling Cutting Machine configuration
| Basic configuration :Model | 5 axis pipe CNC cutting machine |
| Round pipe | Diameter 50-300mm Effective cutting length 6m |
| pipe | square pipe and round pipe |
| Plasma cutting speed | 10-3500mm/min |
| Max. Work piece rotating speed: | 8r/min |
| Max. Longitudinal speed: | 3000mm/min |
| A axis Bevel angle | +-60 degree |
| B axis Bevel angle | +-45 degree |
| Plasma bevel thickness | depends on plasma source |
| Control system | FLMC-FX430B control system |
| Driving motor | Japan Panasonic servo Rotary axis=2000W |
| Driving motor | japan Panasonic servo A axis=400W |
| Driving motor | japan Panasonic servo B axis=400W |
| Driving motor | japan pansonic servo Z=120W |
| Driving motor | japan pansonic servo Y=750W |
| Software | FLMC-Pipe Nest software |
| Load | 8T |
We have a strong professional technical team to provide the best products and service for these metal plasma cutting machine..it is the best proper choice if you are working on metal industries.
We have experienced managers with the most perfect price system integration schemes for our customers.
Established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC Plasma machine for over 7 years, familiar with the different requirements from all kinds lines
Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
Cutting Capacity of plasma geneartor
| China Huayuan Power | USA Hypertherm Power | ||
| Power supply | Cutting thickness | Power supply | Cutting thickness |
| 63A | 8mm | 45A | 8mm |
| 100A | 15mm | 65A | 10mm |
| 120A | 20mm | 85A | 12mm |
| 160A | 30mm | 105A | 18mm |
| 200A | 40mm | 125A | 25mm |
| 200A | 30mm | ||
Related China metal cnc plasma cutting machine
package and delivery for our cnc plasma cutting machine
All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment. The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.
We have our own long-term cooperation transportation company, which will give us more favorable prices and feasible suggestions in transportation prices, which will minimize the customer’s freight expenses, and there will never be overcharges.
we here provide you one-stop solution for metal industries cnc machine at affordable price
